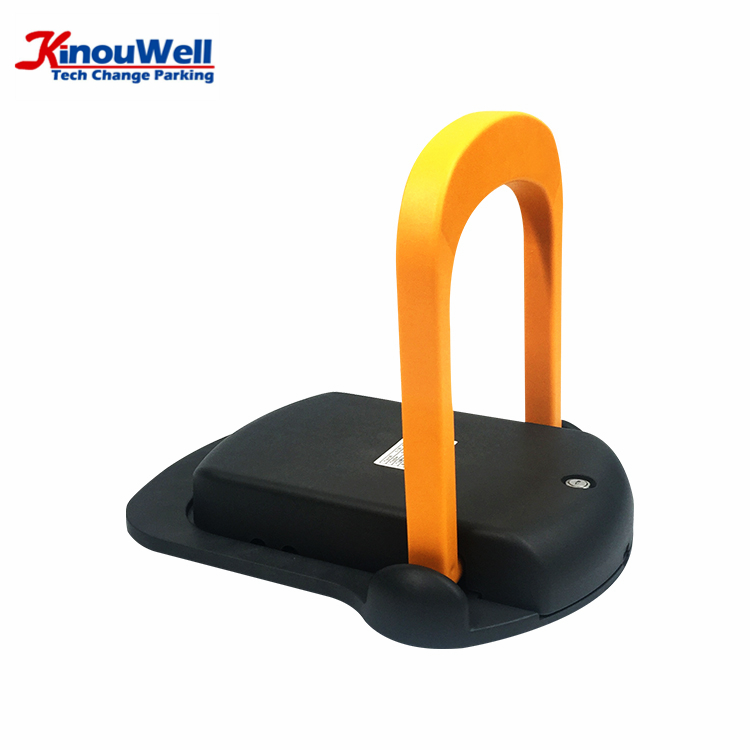

Automatic folding parking barrier with remote control and mobile app

Key attributes

Packaging and delivery

Packaging details

Cardboard box

Warehouse

Lyon, FR

Product details

Video description

[video width="960" height="544" mp4="https://secupark.org/wp-content/uploads/2023/08/bJDdHgvF9VRRxx1VBX84040hd.mp4"][/video]

IP67 Waterproof USB Bluetooth APP Smart Working Car Parking Barrier Lock

Main features:

1) Anti-collision.

180° anti-collision at the front and rear. Bounces back if you get stuck when going up and down the long slope.

2) Waterproof.

Unique seal design, works properly even when submerged in water.

3) Anti-crushing.

360° anti-crushing in all directions, withstands weights of up to 5 tonnes from different directions.

4) Dustproof.

Large seal design for complete dust protection.

5) Anti-theft.

The bolts are installed inside the device.

6) High-strength housing material.

Without the keys, it is impossible to open the cover and remove the lock.

7) Protection against squatting.

Audible alarm and alarm backend in the event of unauthorised parking or vandalism.

Product description

Kind

Automatic Bluetooth parking lock

Motor operating voltage

3V

Lifespan

> 500,000 cycles

Battery

3.6V-38Ah battery

Battery life

3 years at a working frequency of 10 times per day. 5 years at a working frequency of 4 times per day.

Working power

3.6 mW

Standby current

10uA

Communication

Bluetooth

Lifting speed

3 to 5 s

Lifting height

355 mm

Lowered height

66 mm

Protection rating

IP67 protection rating

Material

ABS G30, 8mm thick

Operating temperature

-20°C~+60°C

Control method

APP control or Bluetooth-compatible sensor

Dimensions (mm)

380 (L) * 440 (W) * 66 (H)

Packaging

400*470*12.5mm (5KGS)

Suitable for various car parks. (If you need LORA communication, please contact me.)

Operating mode

1) Bluetooth-compatible sensor.

The sensor connects to your car via USB. When the parking lock matches the sensor, the parking lock rises automatically when your car leaves the parking space and lowers automatically when your car approaches the parking space.

There is an UP/DOWN button on the sensor. Drivers can press UP/DOWN to operate it.

2) App control

[video width="896" height="504" mp4="https://secupark.org/wp-content/uploads/2023/08/y95RGrhozVh5l2JN22j4040sd.mp4"][/video]
